FM Ductile Iron 10 x 3 Wheel with Straight Bearing

Albion

FM Ductile Iron 10 x 3 Wheel with Straight Bearing

Name: FM Ductile Iron 10 x 3 Wheel with Straight Bearing
Brand: Albion
SKU: FM1050120
Availability: InStock

Albion Ductile Iron wheels have higher capacities than standard cast iron wheels, and are able to better withstand shock and abuse from impact-loading.

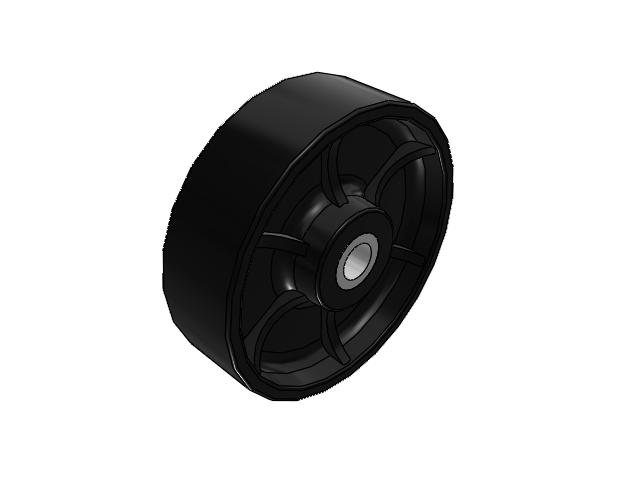

FM1050120 is a 10-inch ductile iron wheel, with a roller bearing. This wheel has a flat tread and is painted black.View CAD

SKU: FM1050120

Hurry up! Current stock:

Current Stock:

Quantity:

Technical Data

Series	FM Ductile Iron
Wheel Diameter	10
Tread Width	3
Bearing Type	Straight
Bearing ID	1-1/4
Hub Length	3-1/4
Capacity	6000
Temperature Maximum	Up to +800Â°F
Bore ID	1-15/16
