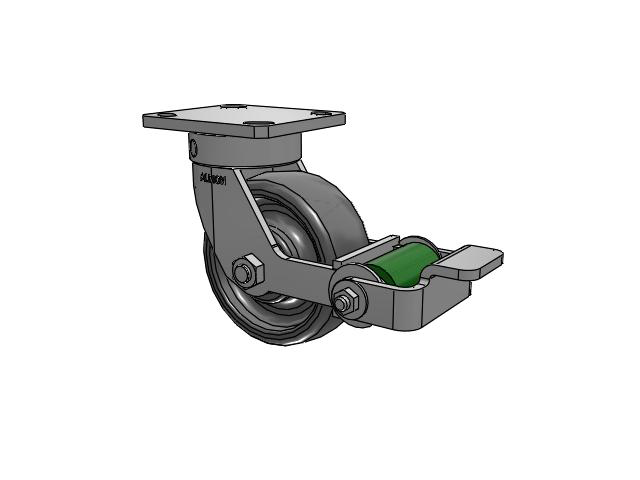

110 Series Kingpinless Top Plate Swivel Caster with 5 x 2 Grey Elastomer SE - Solid Elastomer Wheel and Poly Cam Brake
110 Series Kingpinless Top Plate Swivel Caster with 5 x 2 Grey Elastomer SE - Solid Elastomer Wheel and Poly Cam Brake

Albion

110 Series Kingpinless Top Plate Swivel Caster with 5 x 2 Grey Elastomer SE - Solid Elastomer Wheel and Poly Cam Brake

View CAD
SKU: 110SE05228SP
Hurry up! Current stock:
Technical Data
Series 110 Series Kingpinless
Caster Type Swivel
Brake Type Poly Cam (P)
Wheel Diameter 5
Tread Width 2
Wheel Type SE - Solid Elastomer
Wheel Color Grey Elastomer
Bearing Type Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 4 1/2" x 4"
Capacity 1000
Mount Height 6.5
Swivel Radius 7.75
Swivel Lead 1.375
Wheel Face Crowned Tread
Temperature Range Up to +230°F
Hardness 63(±5) Shore D
Wheel Material Polyurethane
Wheel Category Solid Elastomer
SKU 110SE05228SP
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
