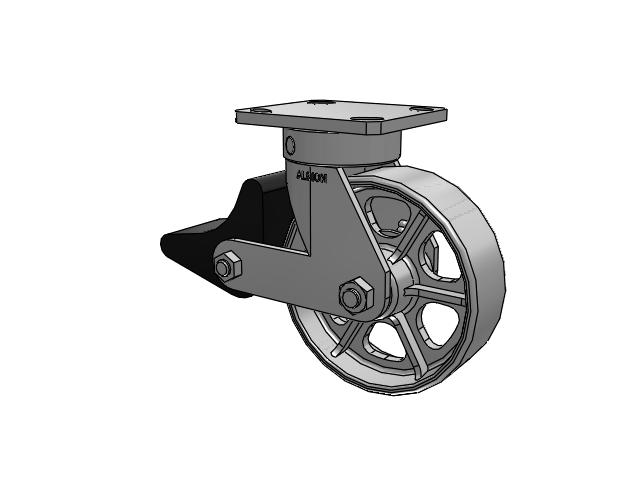

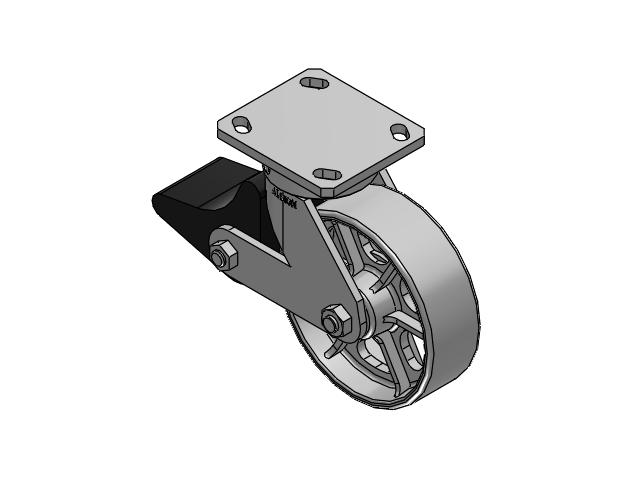

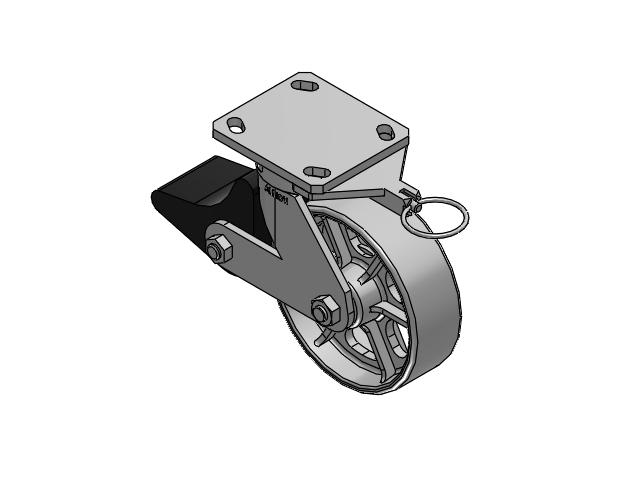

110 Series Kingpinless Top Plate Swivel Caster with 6 x 2 Grey Enamel CA - Cast Iron Wheel and Poly Lock Integrated Brake
110 Series Kingpinless Top Plate Swivel Caster with 6 x 2 Grey Enamel CA - Cast Iron Wheel and Poly Lock Integrated Brake

Albion

110 Series Kingpinless Top Plate Swivel Caster with 6 x 2 Grey Enamel CA - Cast Iron Wheel and Poly Lock Integrated Brake

View CAD
SKU: 110CA06201SPLB
Hurry up! Current stock:
Technical Data
Series 110 Series Kingpinless
Caster Type Swivel
Brake Type Poly Lock Integrated (PLB)
Wheel Diameter 6
Tread Width 2
Wheel Type CA - Cast Iron
Wheel Color Grey Enamel
Bearing Type Roller Bearing
Fastening Type Top Plate Swivel
Fastening Size 4 1/2" x 4"
Capacity 1400
Mount Height 7.5
Swivel Radius 6.1875
Swivel Lead 1.5625
Wheel Face Flat with Rounded Edges
Temperature Range Up to +800°F
Hardness Brinell 145
Wheel Material Metal
Wheel Category Cast Iron
SKU 110CA06201SPLB
