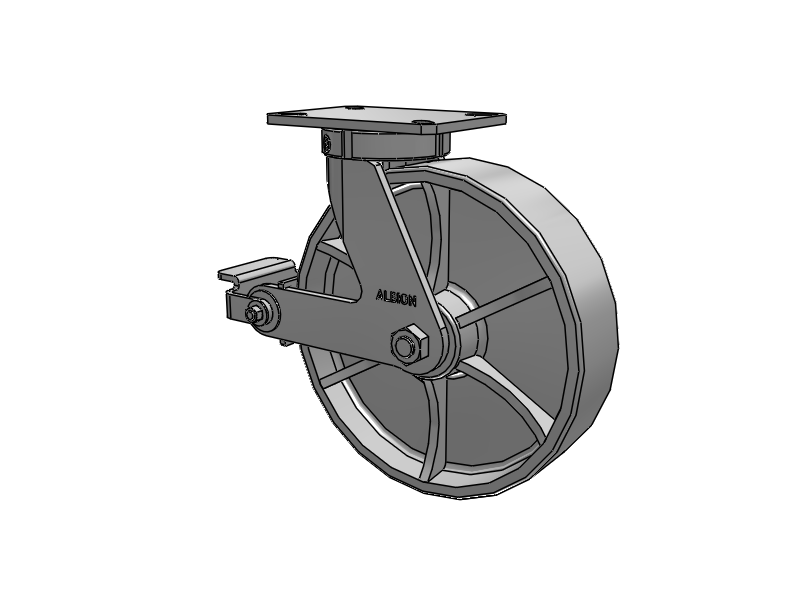

310 Series Top Plate Swivel Caster with 12 x 3 Grey Enamel CA - Cast Iron Wheel and Poly Cam Brake
310 Series Top Plate Swivel Caster with 12 x 3 Grey Enamel CA - Cast Iron Wheel and Poly Cam Brake

Albion

310 Series Top Plate Swivel Caster with 12 x 3 Grey Enamel CA - Cast Iron Wheel and Poly Cam Brake

View CAD
SKU: 310CA12509SPATPP
Hurry up! Current stock:
Technical Data
Series 310 Series
Caster Type Swivel
Brake Type Poly Cam (P)
Wheel Diameter 12
Tread Width 3
Wheel Type CA - Cast Iron
Wheel Color Grey Enamel
Bearing Type Tapered Roller
Fastening Type Top Plate Swivel
Fastening Size 7-1/4'' x 5-1/4'' (PATP)
Capacity 2800
Mount Height 13.5
Swivel Radius 8.6875
Swivel Lead 2.6875
Wheel Face Flat with Rounded Edges
Temperature Range Up to +800°F
Hardness Brinell 145
Wheel Material Metal
Wheel Category Cast Iron
SKU 310CA12509SPATPP
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
