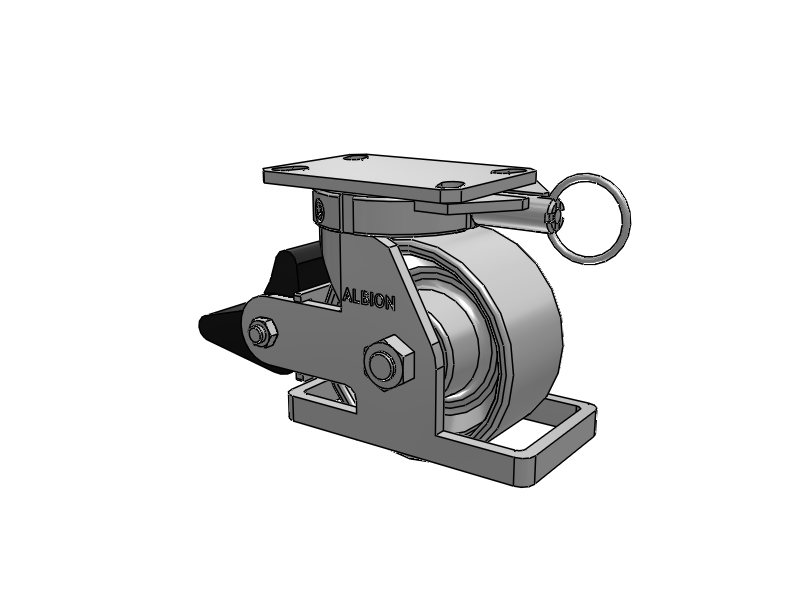

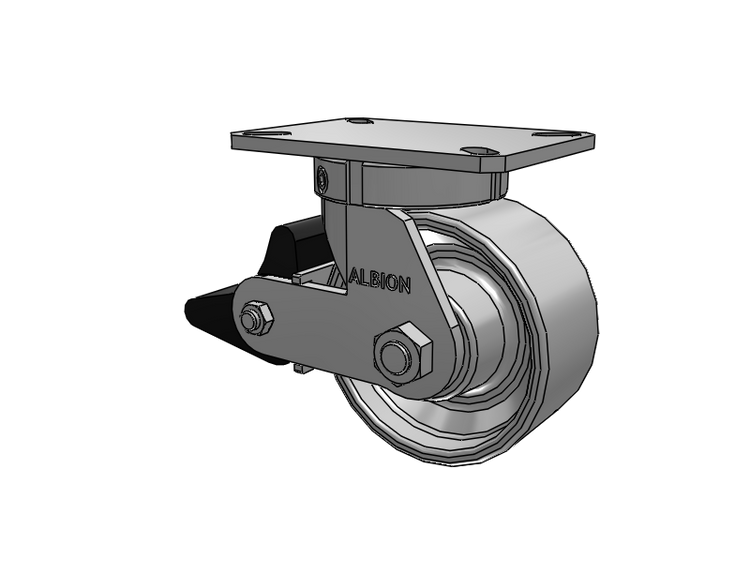

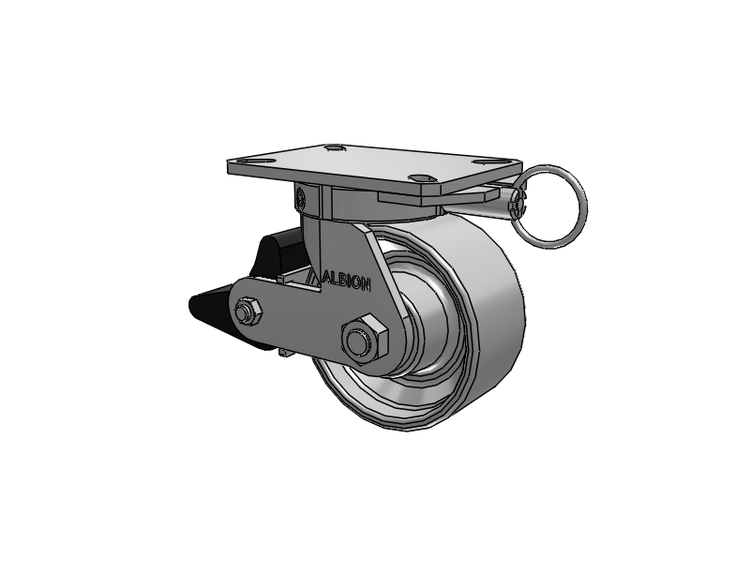

310 Series Top Plate Swivel Caster with 6 x 3 Grey Enamel CA - Cast Iron Wheel and Poly Lock Integrated Brake
310 Series Top Plate Swivel Caster with 6 x 3 Grey Enamel CA - Cast Iron Wheel and Poly Lock Integrated Brake

Albion

310 Series Top Plate Swivel Caster with 6 x 3 Grey Enamel CA - Cast Iron Wheel and Poly Lock Integrated Brake

View CAD
SKU: 310CA06509SPLBTOL
Hurry up! Current stock:
Technical Data
Series 310 Series
Caster Type Swivel
Brake Type Poly Lock Integrated (PLB)
Wheel Diameter 6
Tread Width 3
Wheel Type CA - Cast Iron
Wheel Color Grey Enamel
Bearing Type Tapered Roller
Fastening Type Top Plate Swivel
Fastening Size 6-1/4'' x 4-1/2''
Capacity 2800
Mount Height 7.5
Swivel Radius 5.5
Swivel Lead 1.375
Swivel Lock Swivel Lock (L)
Wheel Face Flat with Rounded Edges
Temperature Range Up to +800°F
Hardness Brinell 145
Toe Guard Toe Guard (TO)
Wheel Material Metal
Wheel Category Cast Iron
SKU 310CA06509SPLBTOL
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
