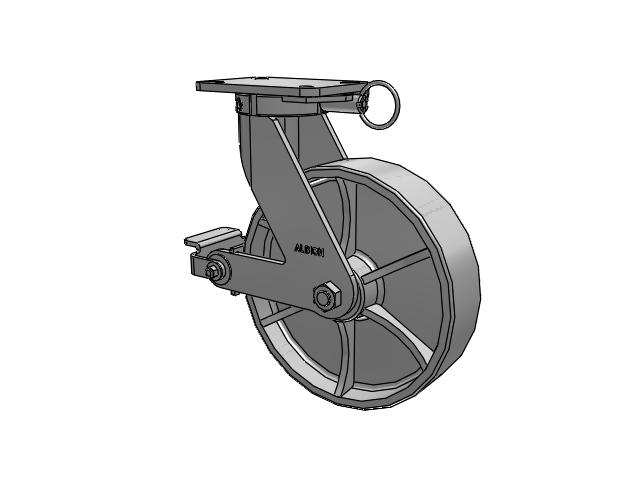

410 Series Top Plate Swivel Caster with 12 x 3 Grey Enamel CA - Cast Iron Wheel and Poly Cam Brake
410 Series Top Plate Swivel Caster with 12 x 3 Grey Enamel CA - Cast Iron Wheel and Poly Cam Brake

Albion

410 Series Top Plate Swivel Caster with 12 x 3 Grey Enamel CA - Cast Iron Wheel and Poly Cam Brake

View CAD
SKU: 410CA12501SPL
Hurry up! Current stock:
Technical Data
Series 410 Series
Caster Type Swivel
Brake Type Poly Cam (P)
Wheel Diameter 12
Tread Width 3
Wheel Type CA - Cast Iron
Wheel Color Grey Enamel
Bearing Type Roller Bearing
Fastening Type Top Plate Swivel
Fastening Size 7-1/4'' x 5-1/4''
Capacity 2
Mount Height 15.5
Swivel Radius 10.3125
Swivel Lead 4.3125
Swivel Lock Swivel Lock (L)
Wheel Face Flat with Rounded Edges
Temperature Range Up to +800°F
Hardness Brinell 145
Toe Guard None
Wheel Material Metal
Wheel Category Cast Iron
SKU 410CA12501SPL
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
