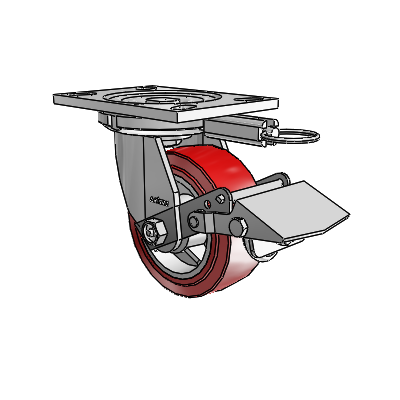

6 Series Casters Top Plate Swivel Zinc Caster with 5 x 2 Maroon on Grey Polyurethane HI-TECH Wheel and Tread Lock Brake
6 Series Casters Top Plate Swivel Zinc Caster with 5 x 2 Maroon on Grey Polyurethane HI-TECH Wheel and Tread Lock Brake

Colson

6 Series Casters Top Plate Swivel Zinc Caster with 5 x 2 Maroon on Grey Polyurethane HI-TECH Wheel and Tread Lock Brake

View CAD
SKU: 6.05209.921 BRK1 MTG52 TG1
Hurry up! Current stock:
Technical Data
Series 6 Series Casters
Caster Type Swivel
Brake Type Tread Lock Brake (BRK1)
Finish Zinc
Wheel Diameter 5
Tread Width 2
Wheel Type Polyurethane HI-TECH
Tread Detail Polyurethane
Core Detail Polyolefin
Wheel Color Maroon on Grey
Bearing Type Delrin
Thread Guard Metal (TG1)
Fastening Type Top Plate Swivel
Fastening Size 6 1/4''x 4 1/2''
Bolt Hole Spacing 2-7/16" to 3-3/8" x 4-15/16" to 5-1/4"
Mounting Bolt Diameter 1/2"
Capacity 750
Mount Height 6.5
Swivel Radius 6.5625
Swivel Lock Welded Hand Activated Swivel Lock (MTG52)
Wheel Face Crowned Tread
Temperature Range -45F to +180F
Hardness 55(+/-5) Shore D
Wheel Material Moldon Polyurethane
Wheel Category Polyurethane
Has Brake Yes
SKU 6.05209.921 BRK1 MTG52 TG1
Features
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
