FL Flanged Cast Iron 8 x 2 Wheel with Straight Roller Bearing

Albion

FL Flanged Cast Iron 8 x 2 Wheel with Straight Roller Bearing

Name: FL Flanged Cast Iron 8 x 2 Wheel with Straight Roller Bearing
Brand: Albion
SKU: FL0840116
Availability: InStock

Albion FL caster wheels are single flanged cast iron wheels. Flanged wheels need an installed track to operate. The flange helps the caster maintain a straight, tracking motion. Albion cast iron has a tensile strength of 30,000 psi.

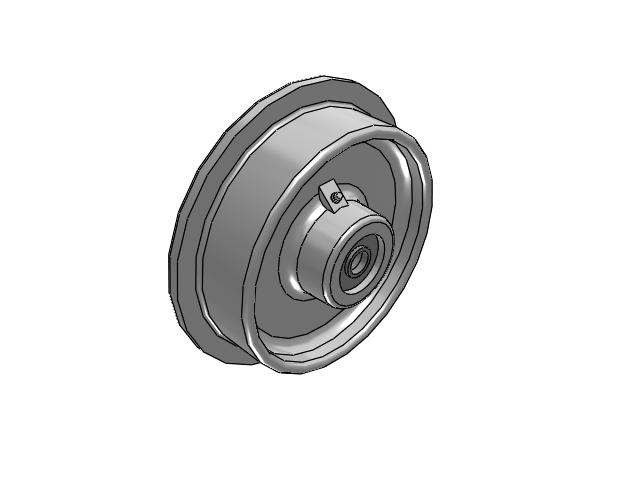

FL0840116 is a 8-inch flanged cast iron wheel, with a roller bearing. The wheel requires a straight track with a minimum height of 0.75 inch(es) and a minimum width of 2 inch(es).View CAD

SKU: FL0840116

Hurry up! Current stock:

Current Stock:

Quantity:

Technical Data

Series	FL Flanged Cast Iron
Wheel Diameter	8
Flange Diameter	9-1/2
Tread Width	2
Bearing Type	Straight Roller
Bearing ID	1
Hub Length	3-1/4
Capacity	1600
Temperature Maximum	Up to +800Â°F
Bore ID	1-15/16
Hub Offset J	3/8
Hardness	Brinell 145
Overall Width	2-1/2
Hub Diameter	3
Flange Width	1/2
Hub Offset	3/8
