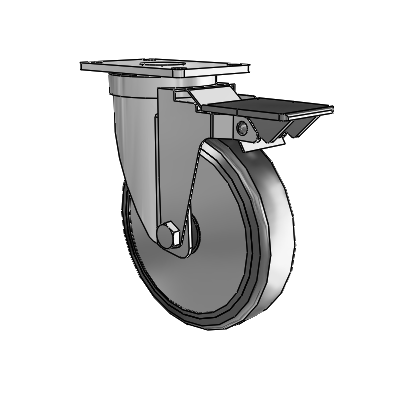

30 Series Top Plate Zinc Swivel Caster with 5 x 1.25 Cushion Rubber (+ Side Plates) Wheel and PosiLoc Brake
30 Series Top Plate Zinc Swivel Caster with 5 x 1.25 Cushion Rubber (+ Side Plates) Wheel and PosiLoc Brake

Jarvis

30 Series Top Plate Zinc Swivel Caster with 5 x 1.25 Cushion Rubber (+ Side Plates) Wheel and PosiLoc Brake

View CAD
SKU: 5-30-452 PLT2 PL GS
Hurry up! Current stock:
Technical Data
Series 30 Series
Caster Type Swivel
Brake Type PosiLoc
Finish Zinc
Wheel Diameter 5
Tread Width 1.25
Wheel Type Cushion Rubber (+ Side Plates)
Bearing Type Ball
Fastening Type Top Plate
Fastening Size 2-3/8" x 3-5/8"
Bolt Hole Spacing 1-3/4" x 3"
Mounting Bolt Diameter 5/16"
Capacity 200
Mount Height 6.25
Swivel Radius 4.5
Swivel Seal Grease Seal
SKU 5-30-452 PLT2 PL GS

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD

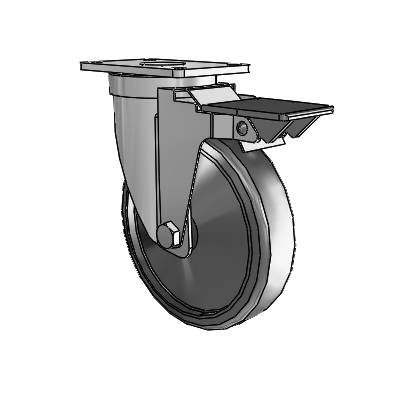

Customers Also Viewed
