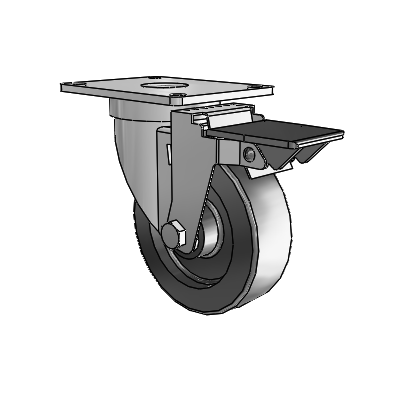

S30 Series Top Plate Stainless Steel Swivel Caster with 4 x 1.25 Polyolefin Wheel and PosiLoc Brake
S30 Series Top Plate Stainless Steel Swivel Caster with 4 x 1.25 Polyolefin Wheel and PosiLoc Brake

Jarvis

S30 Series Top Plate Stainless Steel Swivel Caster with 4 x 1.25 Polyolefin Wheel and PosiLoc Brake

View CAD
SKU: 4-S30-513 PLT3 PL
Hurry up! Current stock:
Technical Data
Series S30 Series
Caster Type Swivel
Brake Type PosiLoc
Finish Stainless Steel
Wheel Diameter 4
Tread Width 1.25
Wheel Type Polyolefin
Bearing Type Plain Bearing
Fastening Type Top Plate
Fastening Size 2-3/8" x 3-5/8"
Bolt Hole Spacing 2-3/8" x 3-7/16"
Mounting Bolt Diameter 5/16"
Capacity 300
Mount Height 5.0625
Swivel Radius 4.4375

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.
