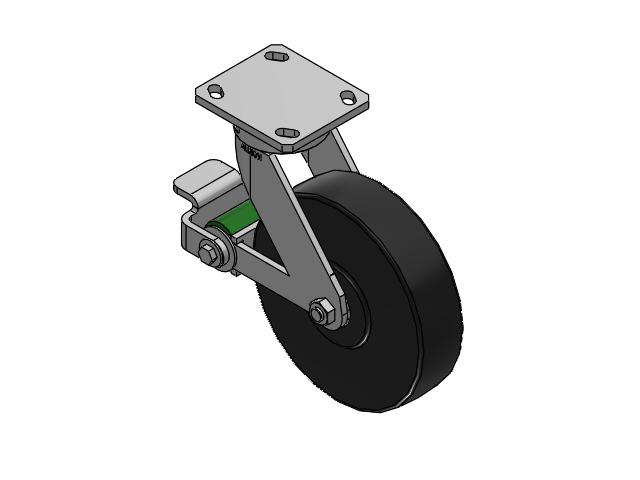

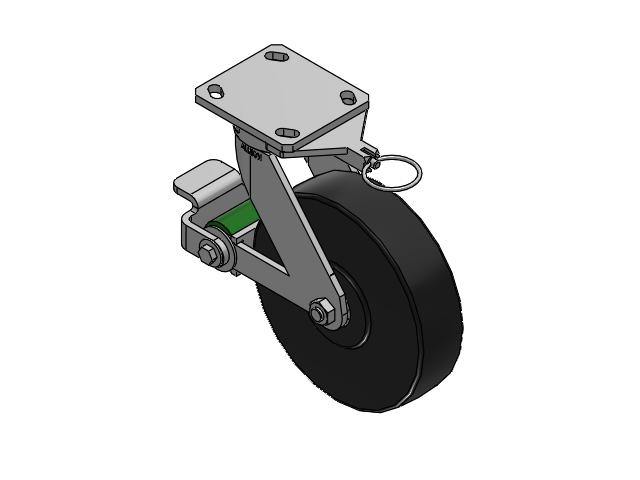

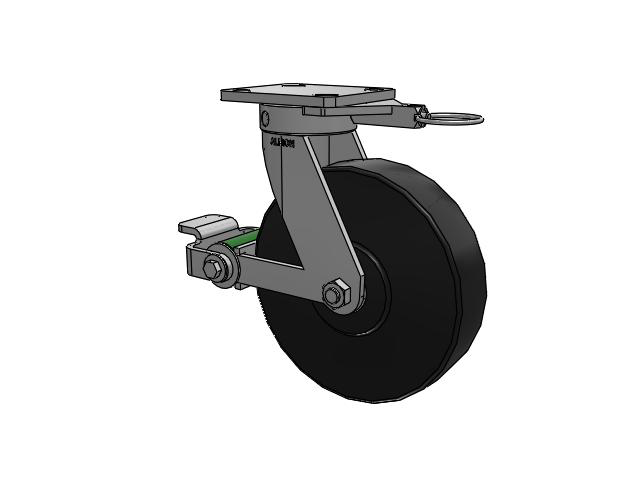

110 Series Kingpinless Top Plate Swivel Caster with 8 x 2 Black Polymer NX - Trionix High Impact Polymer Wheel and Poly Cam Brake
110 Series Kingpinless Top Plate Swivel Caster with 8 x 2 Black Polymer NX - Trionix High Impact Polymer Wheel and Poly Cam Brake

Albion

110 Series Kingpinless Top Plate Swivel Caster with 8 x 2 Black Polymer NX - Trionix High Impact Polymer Wheel and Poly Cam Brake

View CAD
SKU: 110NX08228SPX
Hurry up! Current stock:
Technical Data
Series 110 Series Kingpinless
Brake Type Poly Cam (P)
Wheel Diameter 8
Tread Width 2
Wheel Type NX - Trionix High Impact Polymer
Wheel Color Black Polymer
Bearing Type Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 4 1/2" x 4"
Capacity 2000
Mount Height 10.125
Swivel Radius 6.75
Swivel Lead 3.5
Wheel Face Crowned Tread
Temperature Range -30°F to +220°F
Hardness 78-82 Shore D
Features
Industries
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
