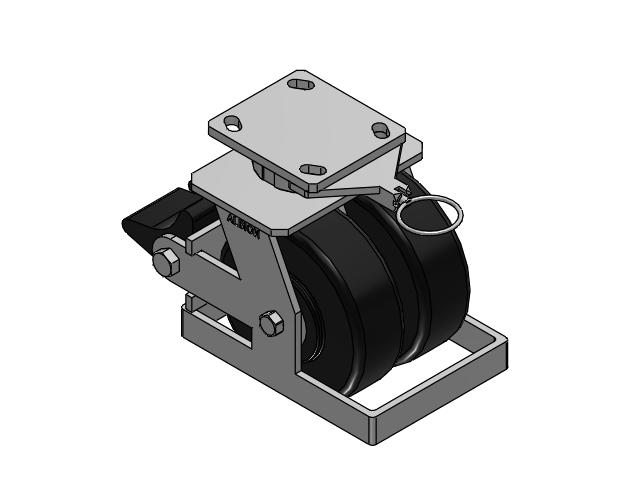

115 Series Top Plate Swivel Black Caster with 6 x 2 NX - Trionix High Impact Polymer Wheel and Poly Lock Integrated Brake
115 Series Top Plate Swivel Black Caster with 6 x 2 NX - Trionix High Impact Polymer Wheel and Poly Lock Integrated Brake

Albion

115 Series Top Plate Swivel Black Caster with 6 x 2 NX - Trionix High Impact Polymer Wheel and Poly Lock Integrated Brake

View CAD
SKU: 115NX06228SPLBLTOE
Hurry up! Current stock:
Technical Data
Series 115 Series
Brake Type Poly Lock Integrated (PLB)
Finish Black
Wheel Diameter 6
Tread Width 2
Wheel Type NX - Trionix High Impact Polymer
Bearing Type Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 4-1/2'' x 4''
Capacity 2000
Mount Height 7.75
Swivel Radius 0
Swivel Lead 1.5625
Swivel Lock Hand Operated Swivel Lock (L)
Wheel Face Slight crown
Temperature Range -30°F to +220°F
Hardness 78-82 Shore D
Toe Guard Toe Guard (TOE)
Features
Industries
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
