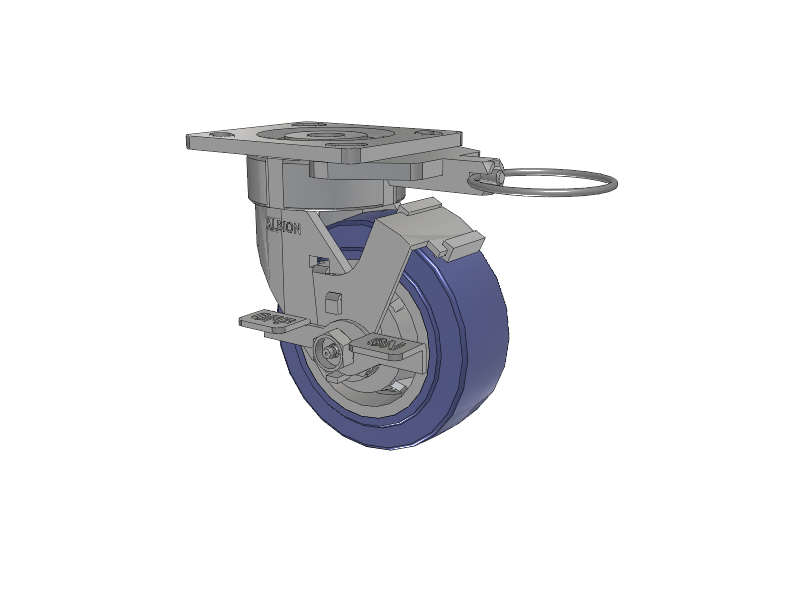

18 Series Top Plate Swivel Caster with 5 x 2 Blue HF - HydroTech (Flat) Wheel and Face Brake
18 Series Top Plate Swivel Caster with 5 x 2 Blue HF - HydroTech (Flat) Wheel and Face Brake

Albion

18 Series Top Plate Swivel Caster with 5 x 2 Blue HF - HydroTech (Flat) Wheel and Face Brake

View CAD
SKU: 18HF05229SFBCL
Hurry up! Current stock:
Technical Data
Series 18 Series
Brake Type Face (FBC)
Wheel Diameter 5
Tread Width 2
Wheel Type HF - HydroTech (Flat)
Wheel Color Blue
Bearing Type Pedestal Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 4-1/2'' x 4''
Capacity 750
Mount Height 6.5
Swivel Radius 4.75
Swivel Lead 1.625
Swivel Lock Hand Operated Swivel Lock (L)
Wheel Face Flat Tread
Temperature Range -45F to +180F intermittent service +120F Continuous
Hardness 40(±5) Shore D
Features
Industries
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
