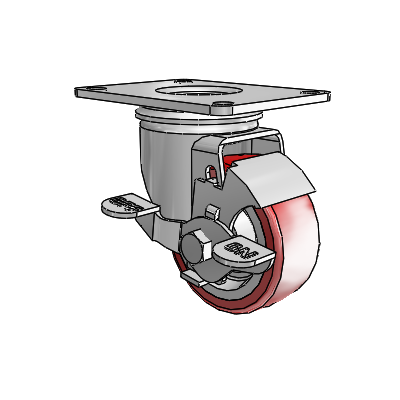

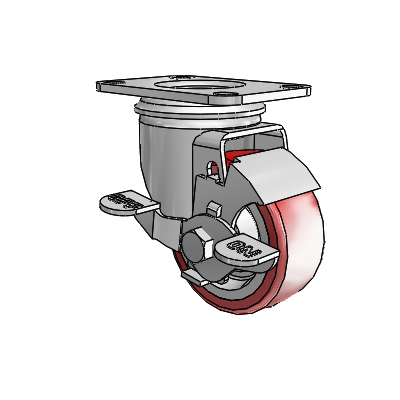

2 Series Casters Top Plate Swivel Zinc with 3 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel and Top Lock Brake
2 Series Casters Top Plate Swivel Zinc with 3 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel and Top Lock Brake

Colson

2 Series Casters Top Plate Swivel Zinc with 3 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel and Top Lock Brake

View CAD
SKU: 2.03356.92 MTG59 BRK1 FSI
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Top Lock (BRK1)
Finish Zinc
Wheel Diameter 3
Tread Width 1.25
Wheel Type Polyurethane HI-TECH
Tread Detail Polyurethane
Core Detail Polyolefin
Wheel Color Maroon on Grey
Bearing Type Plain Bearing
Fastening Type Top Plate Swivel
Fastening Size 4-1/8'' x 3-1/8'' (MTG59)
Bolt Hole Spacing 2-3/8" x 3-3/8" to 3-1/2"
Mounting Bolt Diameter 5/16"
Capacity 200
Mount Height 4.125
Swivel Radius 3.625
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 45(+/-5) Shore D
Wheel Material Moldon Polyurethane
Wheel Category Polyurethane
Has Brake Yes
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
