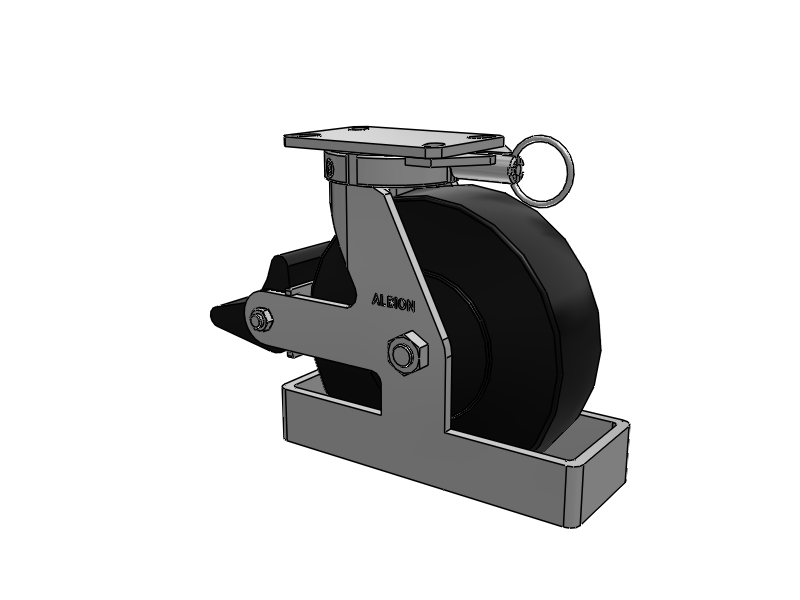

310 Series Top Plate Swivel Caster with 10 x 3 Black Polymer NX - Trionix High Impact Polymer Wheel and Poly Lock Integrated Brake
310 Series Top Plate Swivel Caster with 10 x 3 Black Polymer NX - Trionix High Impact Polymer Wheel and Poly Lock Integrated Brake

Albion

310 Series Top Plate Swivel Caster with 10 x 3 Black Polymer NX - Trionix High Impact Polymer Wheel and Poly Lock Integrated Brake

View CAD
SKU: 310NX10528SPLBTOL
Hurry up! Current stock:
Technical Data
Series 310 Series
Caster Type Swivel
Brake Type Poly Lock Integrated (PLB)
Wheel Diameter 10
Tread Width 3
Wheel Type NX - Trionix High Impact Polymer
Wheel Color Black Polymer
Bearing Type Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 6-1/4'' x 4-1/2''
Capacity 4100
Mount Height 11.5
Swivel Radius 8.25
Swivel Lead 2.25
Swivel Lock Swivel Lock (L)
Wheel Face Crowned Tread
Temperature Range -30°F to +220°F
Hardness 78-82 Shore D
Toe Guard Toe Guard (TO)
Wheel Material Nylon
Wheel Category Trionix High-Impact Nylon
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
