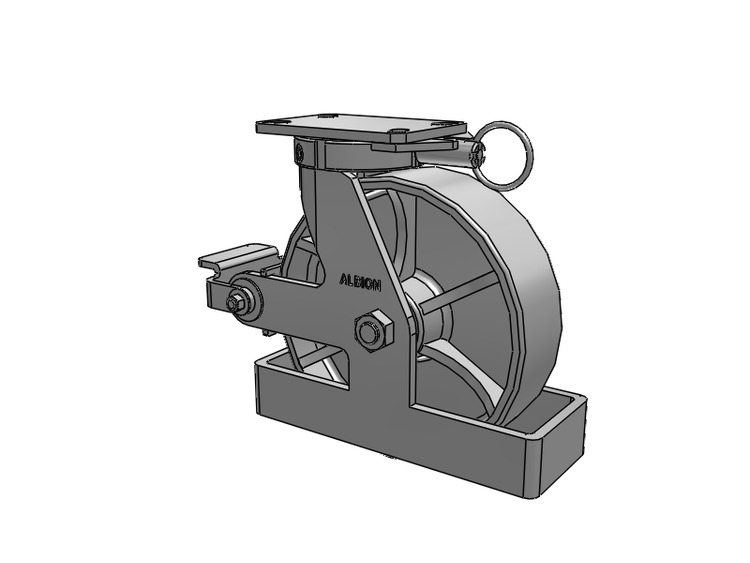

310 Series Top Plate Swivel Caster with 10 x 3 Grey Enamel CA - Cast Iron Wheel and Poly Cam Brake
310 Series Top Plate Swivel Caster with 10 x 3 Grey Enamel CA - Cast Iron Wheel and Poly Cam Brake

Albion

310 Series Top Plate Swivel Caster with 10 x 3 Grey Enamel CA - Cast Iron Wheel and Poly Cam Brake

View CAD
SKU: 310CA10509SP
Hurry up! Current stock:
Technical Data
Series 310 Series
Caster Type Swivel
Brake Type Poly Cam (P)
Wheel Diameter 10
Tread Width 3
Wheel Type CA - Cast Iron
Wheel Color Grey Enamel
Bearing Type Tapered Roller
Fastening Type Top Plate Swivel
Fastening Size 6-1/4'' x 4-1/2''
Capacity 2800
Mount Height 11.5
Swivel Radius 7.25
Swivel Lead 2.25
Wheel Face Flat with Rounded Edges
Temperature Range Up to +800°F
Hardness Brinell 145
Wheel Material Metal
Wheel Category Cast Iron
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
