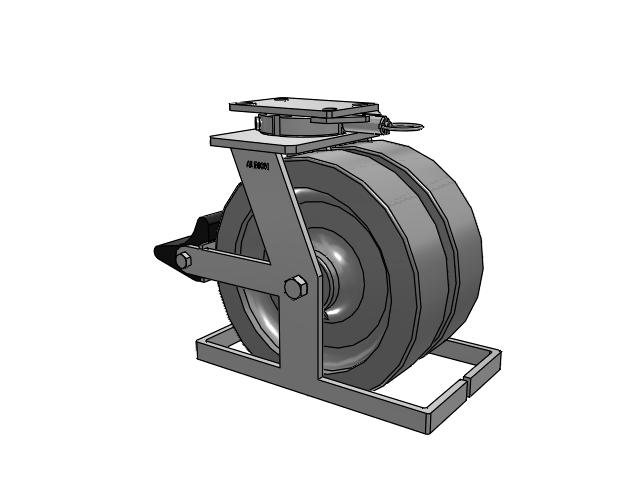

315 Series Top Plate Swivel Caster with 12 x 3 FS - Drop-Forged Steel Wheel and Poly Lock Integrated Brake
315 Series Top Plate Swivel Caster with 12 x 3 FS - Drop-Forged Steel Wheel and Poly Lock Integrated Brake

Albion

315 Series Top Plate Swivel Caster with 12 x 3 FS - Drop-Forged Steel Wheel and Poly Lock Integrated Brake

View CAD
SKU: 315FS12501SPLBLTOE
Hurry up! Current stock:
Technical Data
Series 315 Series
Brake Type Poly Lock Integrated (PLB)
Wheel Diameter 12
Tread Width 3
Wheel Type FS - Drop-Forged Steel
Bearing Type Roller Bearing
Fastening Type Top Plate Swivel
Fastening Size 6-1/4'' x 4-1/2''
Capacity 4
Mount Height 14
Swivel Radius 0
Swivel Lead 2.6875
Swivel Lock Hand Operated Swivel Lock (L)
Wheel Face Machined flat with rounded edges
Temperature Range Up to +800°F
Hardness Rockwell 80 B
Toe Guard Toe Guard (TOE)
