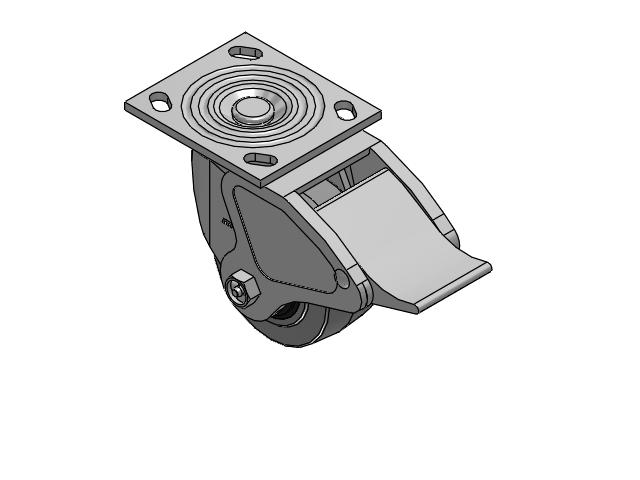

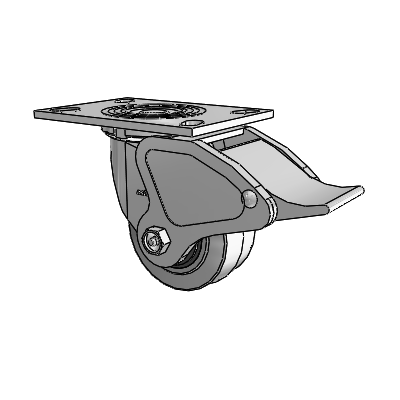

4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 4 x 2 Performa Rubber (Flat/Conductive) Wheel and Total Lock Brake
4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 4 x 2 Performa Rubber (Flat/Conductive) Wheel and Total Lock Brake

Colson

4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 4 x 2 Performa Rubber (Flat/Conductive) Wheel and Total Lock Brake

View CAD
SKU: 4.04109.459 COND BRK4
Hurry up! Current stock:
Technical Data
Series 4 Series 2 Inch Wide Casters
Caster Type Swivel
Brake Type Total Lock (BRK4)
Wheel Diameter 4
Tread Width 2
Wheel Type Performa Rubber (Flat/Conductive)
Bearing Type Roller Bearing
Fastening Type Top Plate Swivel
Fastening Size 4-1/2" x 4" (Standard)
Capacity 300
Mount Height 5.625
Swivel Radius 6.6875
Temperature Range -45°F to +180°F Intermittent Service (120°F Continuous Service)
Wheel Material Conductive Rubber
Wheel Category Rubber
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
