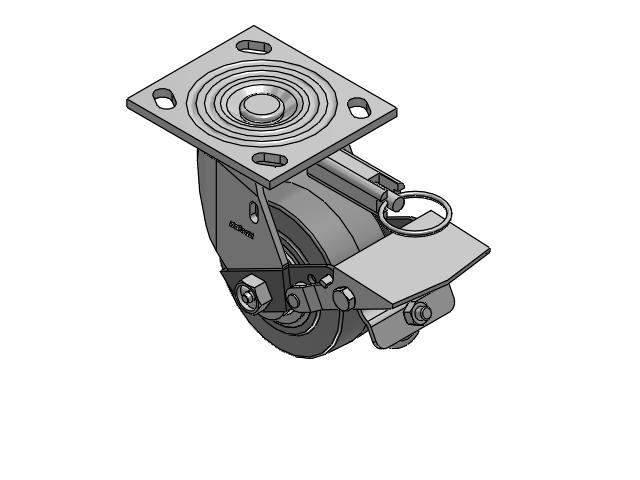

4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 4 x 2 Performa Rubber (Flat/Grey) Wheel and Tread Lock Brake
4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 4 x 2 Performa Rubber (Flat/Grey) Wheel and Tread Lock Brake

Colson

4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 4 x 2 Performa Rubber (Flat/Grey) Wheel and Tread Lock Brake

View CAD
SKU: 4.04109.4P5 MTG51 BRK1
Hurry up! Current stock:
Technical Data
Series 4 Series 2 Inch Wide Casters
Caster Type Swivel
Brake Type Tread Lock Brake (BRK1)
Wheel Diameter 4
Tread Width 2
Wheel Type Performa Rubber (Flat/Grey)
Bearing Type Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 4-1/2" x 4" (Standard)
Capacity 400
Mount Height 5.625
Swivel Radius 5.9375
Swivel Lock Welded Hand Activated Swivel Lock (MTG51)
Temperature Range -45°F to +180°F Intermittent Service (120°F Continuous Service)
Wheel Material High-Performance Rubber
Wheel Category Rubber
