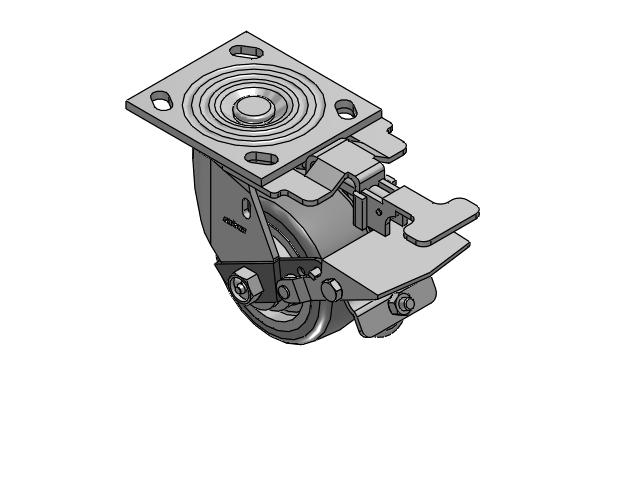

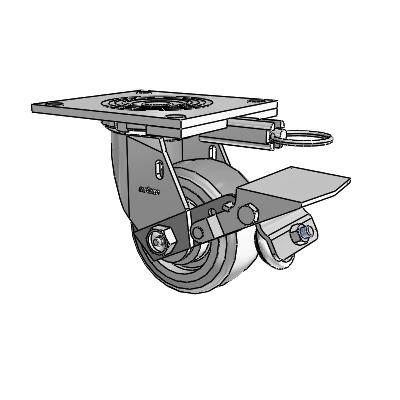

4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 4 x 2 Trans-forma (Flat) Wheel and Tread Lock Brake
4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 4 x 2 Trans-forma (Flat) Wheel and Tread Lock Brake

Colson

4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 4 x 2 Trans-forma (Flat) Wheel and Tread Lock Brake

View CAD
SKU: 4.04109.4E1 MTG81 BRK1
Hurry up! Current stock:
Technical Data
Series 4 Series 2 Inch Wide Casters
Caster Type Swivel
Brake Type Tread Lock Brake (BRK1)
Wheel Diameter 4
Tread Width 2
Wheel Type Trans-forma (Flat)
Bearing Type Delrin
Fastening Type Top Plate Swivel
Fastening Size 4-1/2" x 4" (Standard)
Capacity 400
Mount Height 5.625
Swivel Radius 5.9375
Swivel Lock Foot Activated Swivel Lock (MTG81)
Temperature Range -45°F to +180°F
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
