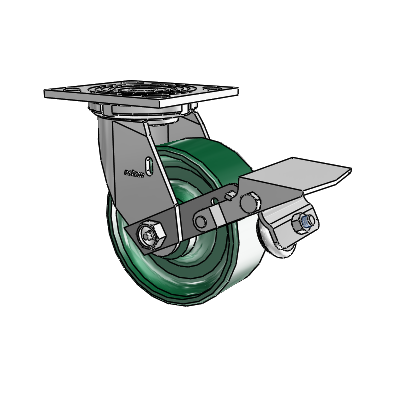

4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 5 x 2 Forged Steel Wheel and Tread Lock Brake
4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 5 x 2 Forged Steel Wheel and Tread Lock Brake

Colson

4 Series 2 Inch Wide Top Plate Swivel Caster Caster with 5 x 2 Forged Steel Wheel and Tread Lock Brake

View CAD
SKU: 4.05109.235 BRK1
Hurry up! Current stock:
Technical Data
Series 4 Series 2 Inch Wide Casters
Caster Type Swivel
Brake Type Tread Lock Brake (BRK1)
Wheel Diameter 5
Tread Width 2
Wheel Type Forged Steel
Bearing Type Pedestal Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 4-1/2" x 4" (Standard)
Capacity 1250
Mount Height 6.5
Swivel Radius 6.625
Temperature Range -45°F to +180°F
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
