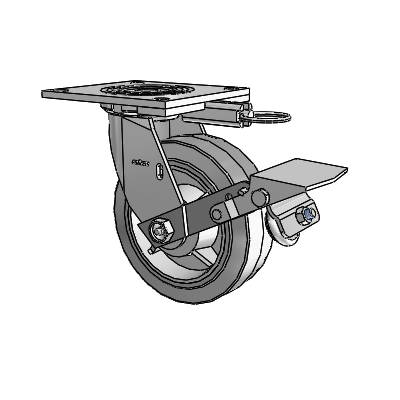

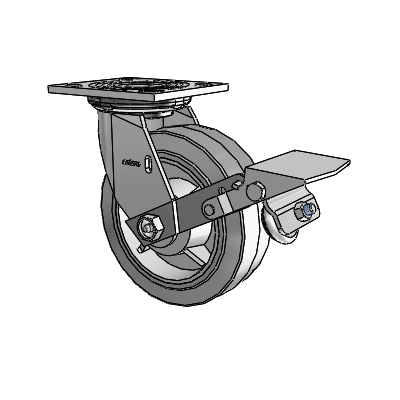

4 Series 2 Inch Wide Top Plate Swivel Caster with 6 x 2 Performa Rubber (Flat/Grey) Wheel and Tread Lock Brake
4 Series 2 Inch Wide Top Plate Swivel Caster with 6 x 2 Performa Rubber (Flat/Grey) Wheel and Tread Lock Brake

Colson

4 Series 2 Inch Wide Top Plate Swivel Caster with 6 x 2 Performa Rubber (Flat/Grey) Wheel and Tread Lock Brake

View CAD
SKU: 4.06109.451 MTG2 BRK1 SEAL
Hurry up! Current stock:
Technical Data
Series 4 Series 2 Inch Wide Casters
Caster Type Swivel
Brake Type Tread Lock Brake (BRK1)
Wheel Diameter 6
Tread Width 2
Wheel Type Performa Rubber (Flat/Grey)
Bearing Type Delrin
Fastening Type Top Plate Swivel
Fastening Size 6-1/4" x 4-1/2" (MTG2)
Capacity 600
Mount Height 7.5
Swivel Radius 7.3125
Temperature Range -45°F to +180°F Intermittent Service (120°F Continuous Service)
Wheel Material High-Performance Rubber
Wheel Category Rubber
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
