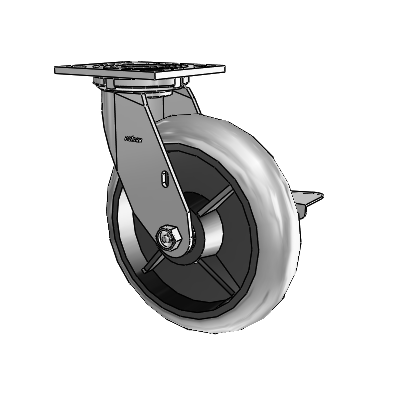

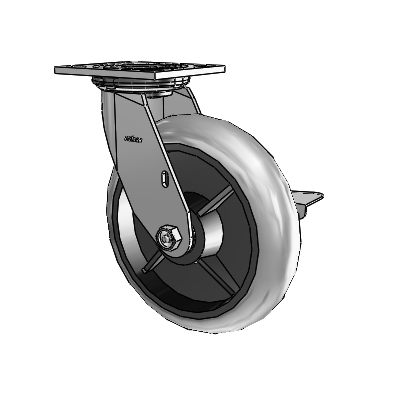

4 Series 2 Inch Wide Top Plate Swivel Caster with 8 x 2 Performa Rubber (Round/Conductive) Wheel and Side Lock Brake
4 Series 2 Inch Wide Top Plate Swivel Caster with 8 x 2 Performa Rubber (Round/Conductive) Wheel and Side Lock Brake

Colson

4 Series 2 Inch Wide Top Plate Swivel Caster with 8 x 2 Performa Rubber (Round/Conductive) Wheel and Side Lock Brake

View CAD
SKU: 4.08199.559 COND BRK3
Hurry up! Current stock:
Technical Data
Series 4 Series 2 Inch Wide Casters
Caster Type Swivel
Brake Type Side Lock (BRK3)
Wheel Diameter 8
Tread Width 2
Wheel Type Performa Rubber (Round/Conductive)
Bearing Type Roller Bearing
Fastening Type Top Plate Swivel
Fastening Size 4-1/2" x 4" (Standard)
Capacity 500
Mount Height 9.5
Swivel Radius 6.5625
Temperature Range -45°F to +180°F Intermittent Service (120°F Continuous Service)
Wheel Material Conductive Rubber
Wheel Category Rubber
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
