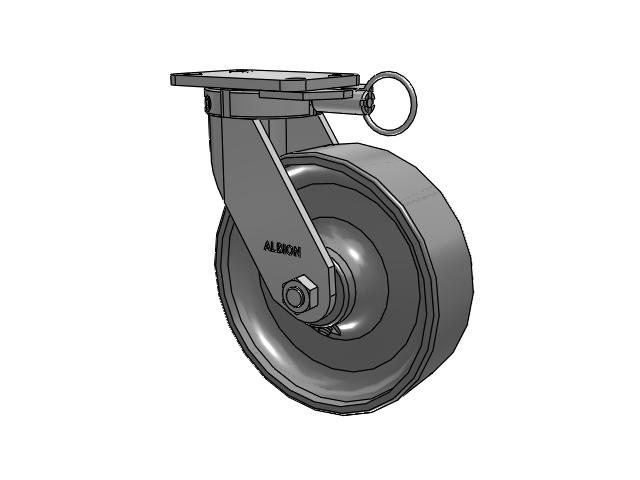

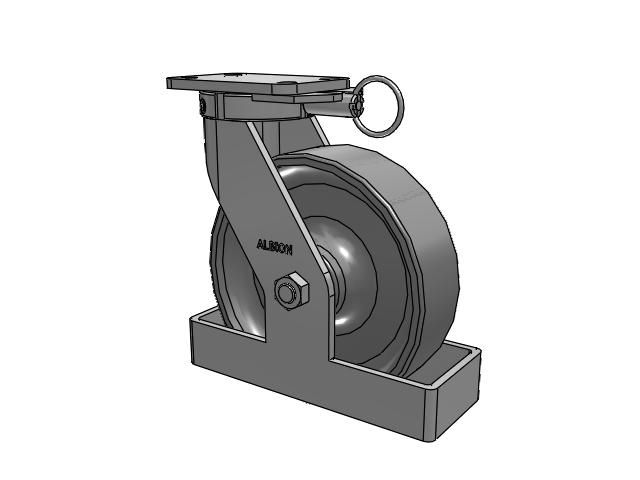

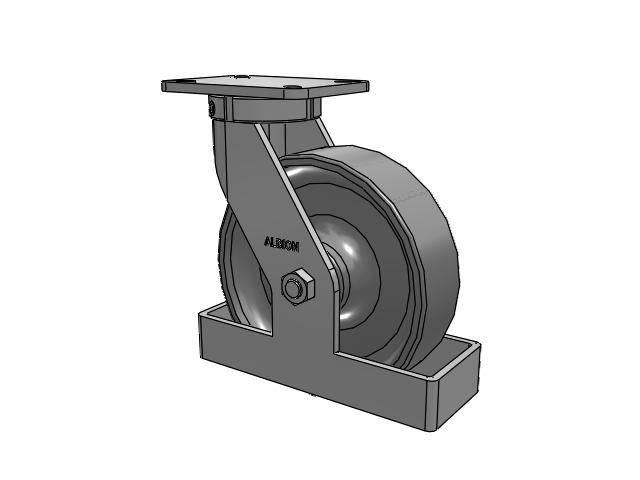

410 Series Top Plate Swivel Caster with 10 x 3 Clear Coat Enamel FS - Drop-Forged Steel Wheel
410 Series Top Plate Swivel Caster with 10 x 3 Clear Coat Enamel FS - Drop-Forged Steel Wheel

Albion

410 Series Top Plate Swivel Caster with 10 x 3 Clear Coat Enamel FS - Drop-Forged Steel Wheel

View CAD
SKU: 410FS10501STOL
Hurry up! Current stock:
Technical Data
Series 410 Series
Caster Type Swivel
Brake Type None
Wheel Diameter 10
Tread Width 3
Wheel Type FS - Drop-Forged Steel
Wheel Color Clear Coat Enamel
Bearing Type Roller Bearing
Fastening Type Top Plate Swivel
Fastening Size 7-1/4'' x 5-1/4''
Capacity 5
Mount Height 12.5
Swivel Radius 9.36
Swivel Lead 3.375
Swivel Lock Swivel Lock (L)
Wheel Face Flat with Rounded Edges
Temperature Range Up to +800°F
Hardness Rockwell 80 B
Toe Guard Toe Guard (TO)
Wheel Material Metal
Wheel Category Drop Forged Steel
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.
