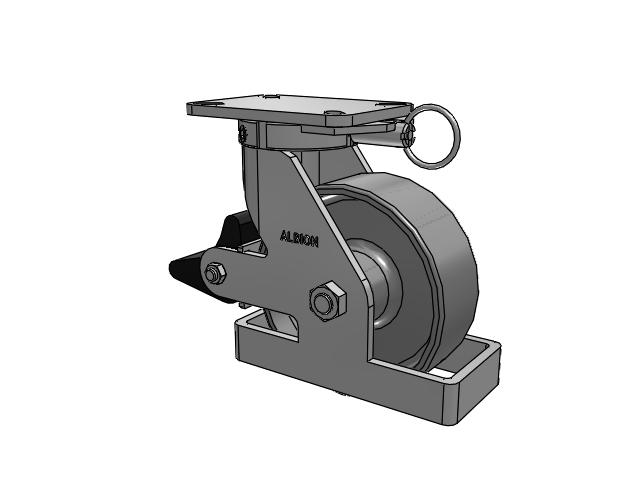

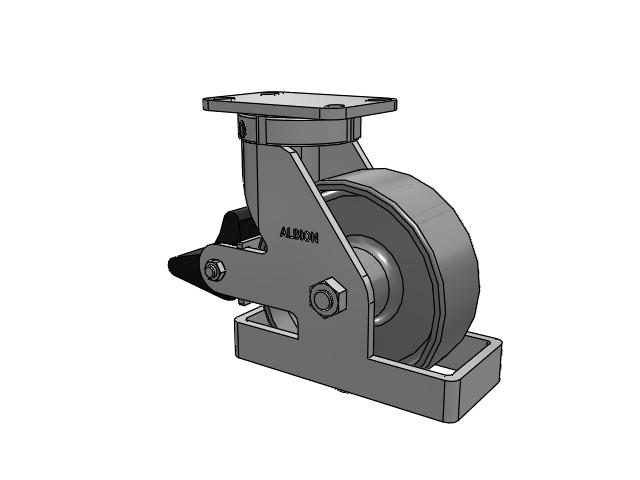

410 Series Top Plate Swivel Caster with 8 x 3 Clear Coat Enamel FS - Drop-Forged Steel Wheel and Poly Lock Integrated Brake
410 Series Top Plate Swivel Caster with 8 x 3 Clear Coat Enamel FS - Drop-Forged Steel Wheel and Poly Lock Integrated Brake

Albion

410 Series Top Plate Swivel Caster with 8 x 3 Clear Coat Enamel FS - Drop-Forged Steel Wheel and Poly Lock Integrated Brake

View CAD
SKU: 410FS08509SPATKPLBTO
Hurry up! Current stock:
Technical Data
Series 410 Series
Caster Type Swivel
Brake Type Poly Lock Integrated (PLB)
Wheel Diameter 8
Tread Width 3
Wheel Type FS - Drop-Forged Steel
Wheel Color Clear Coat Enamel
Bearing Type Tapered Roller
Fastening Type Top Plate Swivel
Fastening Size 6-1/4'' x 4-1/2'' (PATK)
Capacity 4
Mount Height 10.5
Swivel Radius 7.95
Swivel Lead 2.9375
Swivel Lock None
Wheel Face Flat with Rounded Edges
Temperature Range Up to +800°F
Hardness Rockwell 80 B
Toe Guard Toe Guard (TO)
Wheel Material Metal
Wheel Category Drop Forged Steel
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
