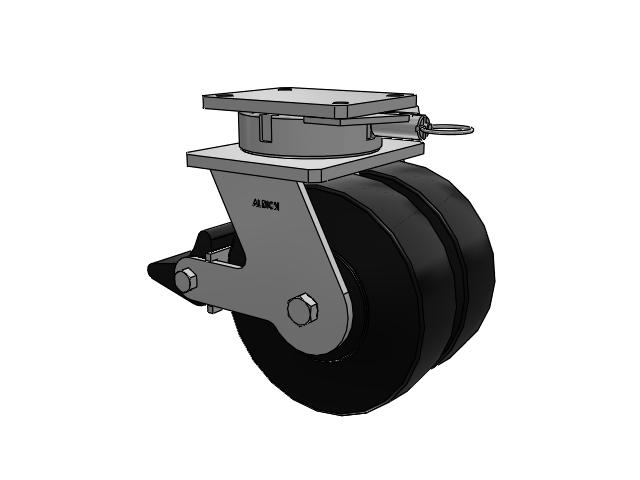

615 Series Top Plate Swivel Caster with 10 x 3 Black NX - Trionix High Impact Polymer Wheel and Poly Lock Integrated Brake
615 Series Top Plate Swivel Caster with 10 x 3 Black NX - Trionix High Impact Polymer Wheel and Poly Lock Integrated Brake

Albion

615 Series Top Plate Swivel Caster with 10 x 3 Black NX - Trionix High Impact Polymer Wheel and Poly Lock Integrated Brake

View CAD
SKU: 615NX10528SPLBL
Hurry up! Current stock:
Technical Data
Series 615 Series
Brake Type Poly Lock Integrated (PLB)
Wheel Diameter 10
Tread Width 3
Wheel Type NX - Trionix High Impact Polymer
Wheel Color Black
Bearing Type Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 7-1/2'' x 6-1/4''
Capacity 9
Mount Height 13
Swivel Radius 8.5
Swivel Lead 2.75
Swivel Lock Hand Operated Swivel Lock (L)
Wheel Face Slight crown
Temperature Range -30°F to +220°F
Hardness 78-82 Shore D
Toe Guard None
