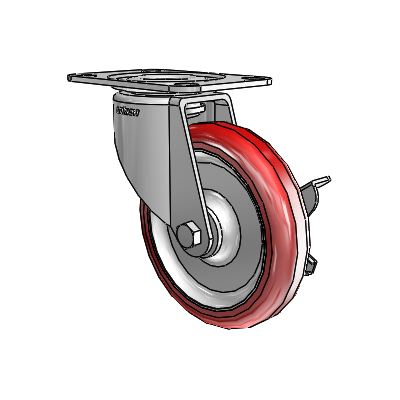

7/8" Wide Casters: Series 1 | Colson Large Top Plate Swivel Caster up to 145 lbs Zinc with 4 x 0.8750 Maroon on Grey Polyurethane HI-TECH Wheel and Side Lock Brake
7/8" Wide Casters: Series 1 | Colson Large Top Plate Swivel Caster up to 145 lbs Zinc with 4 x 0.8750 Maroon on Grey Polyurethane HI-TECH Wheel and Side Lock Brake

Colson

7/8" Wide Casters: Series 1 | Colson Large Top Plate Swivel Caster up to 145 lbs Zinc with 4 x 0.8750 Maroon on Grey Polyurethane HI-TECH Wheel and Side Lock Brake

View CAD
SKU: 1.04356.91 BRK3
Hurry up! Current stock:
Technical Data
Series 7/8" Wide Casters: Series 1 | Colson Caster
Caster Type Swivel
Brake Type Side Lock (BRK3)
Finish Zinc
Wheel Diameter 4
Tread Width 0.875
Wheel Type Polyurethane HI-TECH
Tread Detail Polyurethane
Core Detail Polyolefin
Wheel Color Maroon on Grey
Bearing Type Delrin
Fastening Type Large Top Plate Swivel up to 145 lbs
Fastening Size 3-5/8'' x 2-1/2''
Bolt Hole Spacing 1-3/4" x 2-13/16" to 3-1/16"
Mounting Bolt Diameter 5/16"
Capacity 125
Mount Height 4.75
Swivel Radius 3.4375
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 45(+/-5) Shore D
Wheel Material Moldon Polyurethane
Wheel Category Polyurethane
Has Brake Yes
