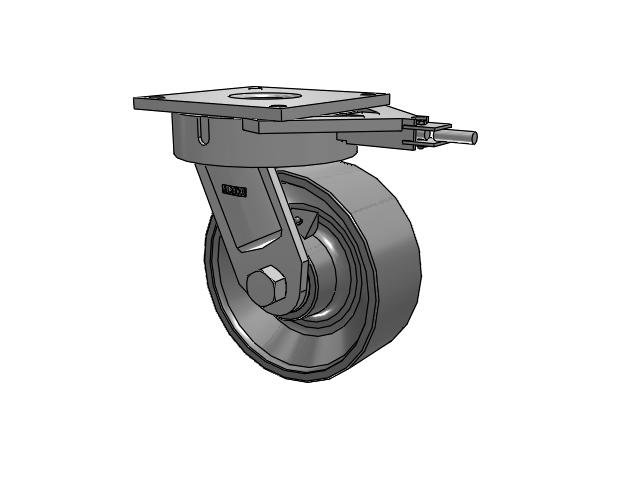

700 Series Top Plate Swivel Caster with 10 Clear Coat Enamel FH - Drop-Forged Steel (Large Bore) Wheel
700 Series Top Plate Swivel Caster with 10 Clear Coat Enamel FH - Drop-Forged Steel (Large Bore) Wheel

Albion

700 Series Top Plate Swivel Caster with 10 Clear Coat Enamel FH - Drop-Forged Steel (Large Bore) Wheel

View CAD
SKU: 700FH10709SL
Hurry up! Current stock:
Technical Data
Series 700 Series
Brake Type None
Wheel Diameter 10
Tread Width 0
Wheel Type FH - Drop-Forged Steel (Large Bore)
Wheel Color Clear Coat Enamel
Bearing Type Tapered Roller
Fastening Type Top Plate Swivel
Fastening Size 8 1/2" x 8 1/2"
Capacity 20
Mount Height 13
Swivel Radius 7.5
Swivel Lead 2.5
Swivel Lock Hand Operated Swivel Lock (L)
Wheel Face Machined flat with rounded edges
Temperature Range Up to +800°F
Hardness Rockwell 80 B
Features
Industries
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
