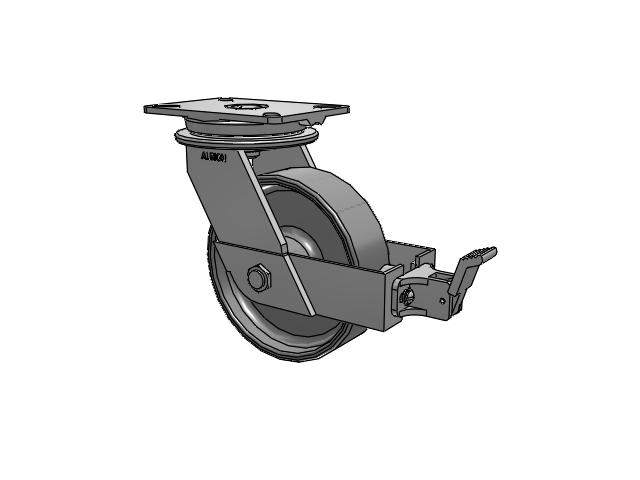

90 Series Top Plate Swivel Caster with 8 x 2.5 Clear Coat Enamel FS - Drop-Forged Steel Wheel and Face Brake
90 Series Top Plate Swivel Caster with 8 x 2.5 Clear Coat Enamel FS - Drop-Forged Steel Wheel and Face Brake

Albion

90 Series Top Plate Swivel Caster with 8 x 2.5 Clear Coat Enamel FS - Drop-Forged Steel Wheel and Face Brake

View CAD
SKU: 90FS08401SFBB
Hurry up! Current stock:
Technical Data
Series 90 Series
Brake Type Face (FBB)
Wheel Diameter 8
Tread Width 2.5
Wheel Type FS - Drop-Forged Steel
Wheel Color Clear Coat Enamel
Bearing Type Roller Bearing
Fastening Type Top Plate Swivel
Fastening Size 7 1/4" x 5 1/4"
Capacity 3
Mount Height 10.5
Swivel Radius 0
Swivel Lead 2.5
Swivel Lock N/A
Wheel Face Machined flat with rounded edges
Temperature Range Up to +800°F
Hardness Rockwell 80 B
Industries
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
