FH Drop Forged Steel 8 x 4 Wheel with Tapered Roller Bearing

Albion

FH Drop Forged Steel 8 x 4 Wheel with Tapered Roller Bearing

Name: FH Drop Forged Steel 8 x 4 Wheel with Tapered Roller Bearing
Brand: Albion
SKU: FH0870924
Availability: InStock

Albion Drop-Forged Steel wheels are hot-forged from carbon steel billets. The forging process improves grain flow, enhances ductility and tensile strength. Drop-forged steel wheels are suitable for high capacity, abusive applications, and can withstand temperatures up to 800 degrees Fahrenheit. Forged Steel has a tensile strength of 64,000 psi. Each wheel is finished in a clear coat enamel to further protect and extend the wheel's life.

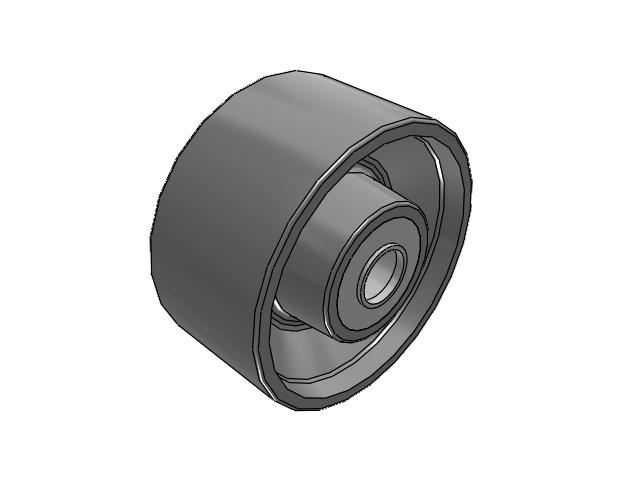

FH0870924 is a 8-inch drop forged steel wheel with a tapered roller bearing and flat tread.View CAD

SKU: FH0870924

Hurry up! Current stock:

Current Stock:

Quantity:

Technical Data

Series	FH Drop Forged Steel
Wheel Diameter	8
Tread Width	4
Bearing Type	Tapered Roller
Bearing ID	1-1/2
Hub Length	4-1/2
Capacity	20000
Temperature Maximum	Up to +800Â°F
Bore ID	3-1/8
Hardness	Rockwell 80 B
