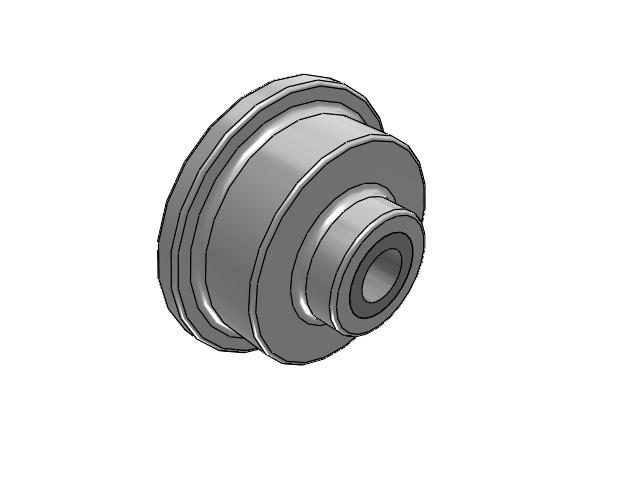

FL Flanged Cast Iron 3-1/4 x 1 Wheel with Straight Roller Bearing

Albion

FL Flanged Cast Iron 3-1/4 x 1 Wheel with Straight Roller Bearing

Name: FL Flanged Cast Iron 3-1/4 x 1 Wheel with Straight Roller Bearing
Brand: Albion
SKU: FL0310112
Availability: InStock

Albion FL caster wheels are single flanged cast iron wheels. Flanged wheels need an installed track to operate. The flange helps the caster maintain a straight, tracking motion. Albion cast iron has a tensile strength of 30,000 psi.

FL0310112 is a 3-inch flanged cast iron wheel, with a roller bearing. The wheel requires a straight track with a minimum height of 0.5 inch(es) and a minimum width of 1 inch(es).View CAD

SKU: FL0310112

Hurry up! Current stock:

Current Stock:

Quantity:

Technical Data

Series	FL Flanged Cast Iron
Wheel Diameter	3-1/4
Flange Diameter	4
Tread Width	1
Bearing Type	Straight Roller
Bearing ID	3/4
Hub Length	2-3/16
Capacity	700
Temperature Maximum	Up to +800Â°F
Bore ID	1-3/16
Hub Offset J	7/32
Hardness	Brinell 145
Overall Width	1-3/8
Hub Diameter	1-3/4
Flange Width	3/8
Hub Offset	19/32
