FS Drop Forged Steel 8 x 4 Wheel with Straight Roller Bearing

Albion

FS Drop Forged Steel 8 x 4 Wheel with Straight Roller Bearing

Name: FS Drop Forged Steel 8 x 4 Wheel with Straight Roller Bearing
Brand: Albion
SKU: FS0870120
Availability: InStock

Albion Drop-Forged Steel wheels are hot-forged from carbon steel billets. The forging process improves grain flow, enhances ductility and tensile strength. Drop-forged steel wheels are suitable for high capacity, abusive applications, and can withstand temperatures up to 800 degrees Fahrenheit. Forged Steel has a tensile strength of 64,000 psi. Each wheel is finished in a clear coat enamel to further protect and extend the wheel's life.

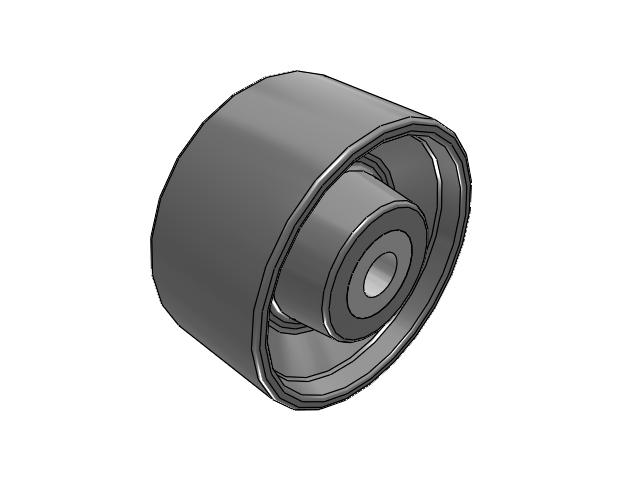

FS0870120 is a 8-inch drop forged steel wheel with a roller bearing and a flat tread.View CAD

SKU: FS0870120

Hurry up! Current stock:

Current Stock:

Quantity:

Technical Data

Series	FS Drop Forged Steel
Wheel Diameter	8
Tread Width	4
Bearing Type	Straight Roller
Bearing ID	1-1/4
Hub Length	4-1/4
Capacity	8350
Temperature Maximum	Up to +800Â°F
Bore ID	2-7/16
Hardness	Rockwell 80 B
