VG Cast Iron V-Groove 8 x 2-1/2 Wheel with Tapered Roller Bearing

Albion

VG Cast Iron V-Groove 8 x 2-1/2 Wheel with Tapered Roller Bearing

Name: VG Cast Iron V-Groove 8 x 2-1/2 Wheel with Tapered Roller Bearing
Brand: Albion
SKU: VG0840916
Availability: InStock

Albion Cast Iron is a premium cast iron wheel that offers the highest tensile strength in the industry (30,000 psi). Cast iron can withstand high temperatures.

The wheels have a relief groove at the base of the "V", which helps equalize the the load to each face of the angle track when in operation. Wheel face and bore are marchined for concentricity to proper tracking. These wheels can be used not only on a track, but any flat surfaces. When using a track, please be aware that track alignment is critical for proper operation.

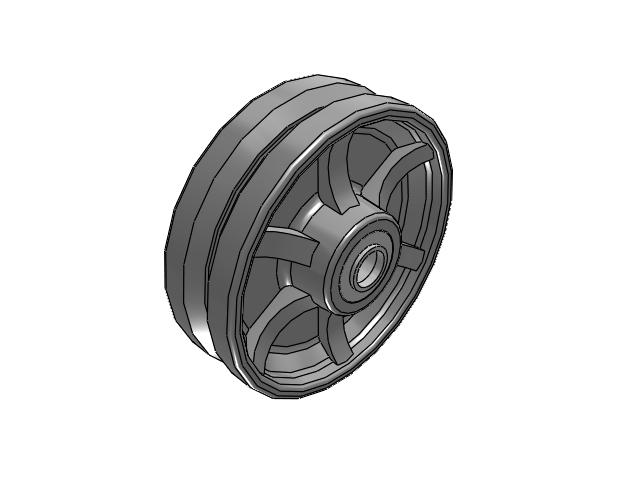

VG0840916 is a 8-inch cast iron v-groove wheel with a tapered roller bearing.View CAD

SKU: VG0840916

Hurry up! Current stock:

Current Stock:

Quantity:

Technical Data

Series	VG Cast Iron V-Groove
Wheel Diameter	8
Tread Width	2-1/2
Bearing Type	Tapered Roller
Bearing ID	1
Hub Length	3-1/2
Capacity	2500
Temperature Maximum	Up to +350Â°F
Bore ID	1.98
Hardness	Brinell 145
V Groove Depth	7/16
V Groove Width	7/8
