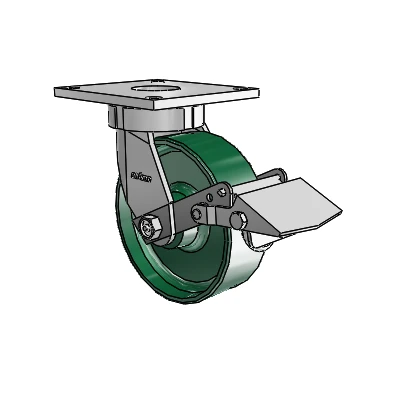

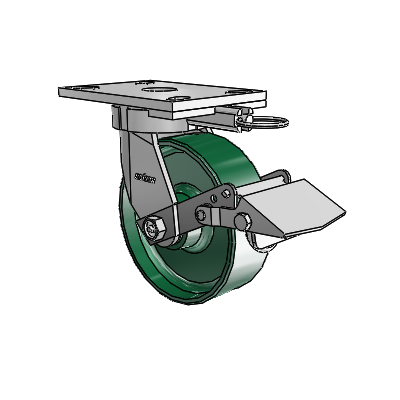

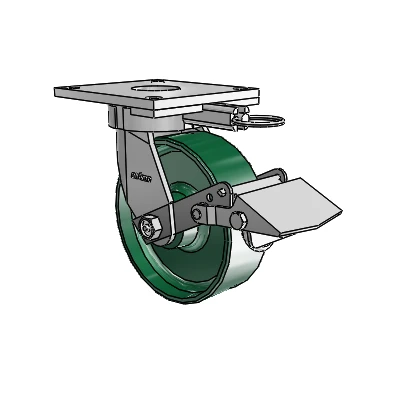

6 Series Kingpinless Casters Top Plate Swivel Caster with 6 x 2 Forged Steel Wheel and Tread Lock Brake
6 Series Kingpinless Casters Top Plate Swivel Caster with 6 x 2 Forged Steel Wheel and Tread Lock Brake

Colson

6 Series Kingpinless Casters Top Plate Swivel Caster with 6 x 2 Forged Steel Wheel and Tread Lock Brake

View CAD
SKU: 6.06289.239 MTG62 BRK1 TG1
Hurry up! Current stock:
Technical Data
Series 6 Series Kingpinless Casters
Caster Type Swivel
Brake Type Tread Lock Brake (BRK1)
Wheel Diameter 6
Tread Width 2
Wheel Type Forged Steel
Bearing Type Roller Bearing
Thread Guard Metal (TG1)
Fastening Type Top Plate Swivel
Fastening Size 6-1/4" x 4-1/2" (Standard)
Capacity 1700
Mount Height 7.5
Swivel Radius 7.5
Swivel Lock Kingpinless Hand Activated Swivel Lock (MTG62)
Wheel Material Forged Steel
Wheel Category Metal
Features
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
