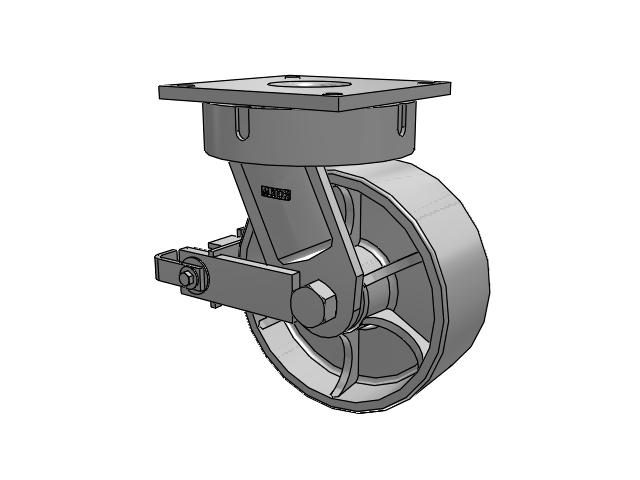

700 Series Top Plate Swivel Caster with 10 Grey Enamel CA - Cast Iron Wheel and Poly Cam Brake

Albion

700 Series Top Plate Swivel Caster with 10 Grey Enamel CA - Cast Iron Wheel and Poly Cam Brake

Name: 700 Series Top Plate Swivel Caster with 10 Grey Enamel CA - Cast Iron Wheel and Poly Cam Brake
Brand: Albion
SKU: 700CA10709SP
Availability: InStock

View CAD

SKU: 700CA10709SP

Hurry up! Current stock:

Current Stock:

Quantity:

Technical Data

Series	700 Series
Brake Type	Poly Cam (P)
Wheel Diameter	10
Tread Width	0
Wheel Type	CA - Cast Iron
Wheel Color	Grey Enamel
Bearing Type	Tapered Roller
Fastening Type	Top Plate Swivel
Fastening Size	8 1/2" x 8 1/2"
Capacity	4
Mount Height	13
Swivel Radius	7.5
Swivel Lead	2.5
Swivel Lock	N/A
Wheel Face	Machined flat with rounded edges
Temperature Range	Up to +800Â°F
Hardness	Brinell 145
