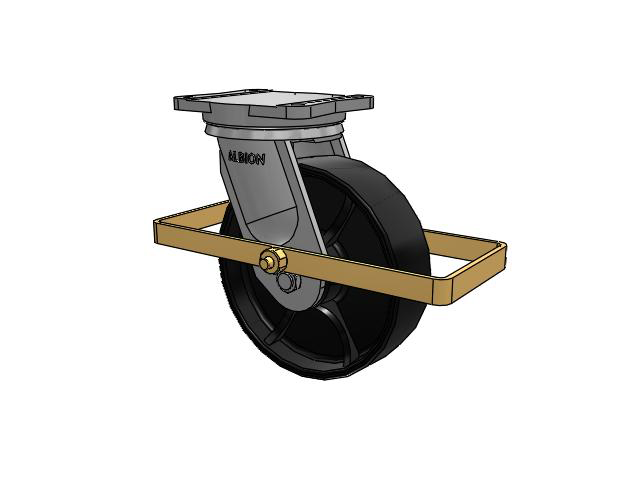

94 Series TRL Top Plate Swivel Caster with 10 x 3 Black Paint FR - Ductile Iron Crowned Tread Wheel and Wrap Around Brake
94 Series TRL Top Plate Swivel Caster with 10 x 3 Black Paint FR - Ductile Iron Crowned Tread Wheel and Wrap Around Brake

Albion

94 Series TRL Top Plate Swivel Caster with 10 x 3 Black Paint FR - Ductile Iron Crowned Tread Wheel and Wrap Around Brake

View CAD
SKU: 94FR10509STRLWB94
Hurry up! Current stock:
Technical Data
Series 94 Series TRL
Brake Type Wrap Around (WB94)
Wheel Diameter 10
Tread Width 3
Wheel Type FR - Ductile Iron Crowned Tread
Wheel Color Black Paint
Bearing Type Tapered
Fastening Type Top Plate Swivel
Fastening Size 7 1/2" x 6 1/2"
Capacity 6
Mount Height 12.5
Swivel Radius 7.5
Swivel Lead 2.5
Swivel Lock N/A
Wheel Face Full radius tread design
Temperature Range Up to +800°F
Features
Industries
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
