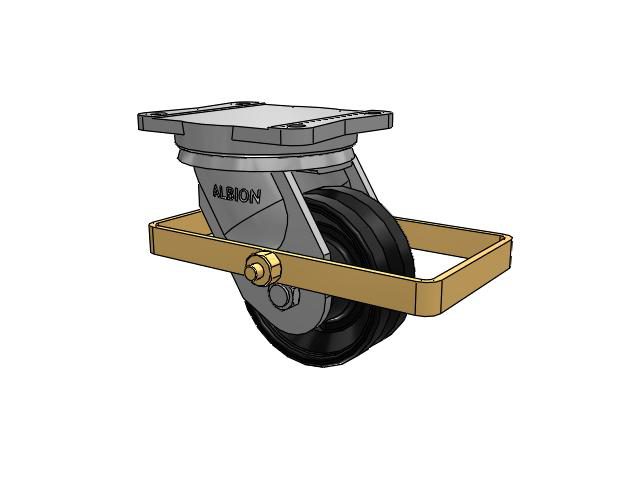

94 Series TRL Top Plate Swivel Caster with 6 x 2.5 Flat Black Paint VM - Ductile V-Groove Wheel and Wrap Around Brake
94 Series TRL Top Plate Swivel Caster with 6 x 2.5 Flat Black Paint VM - Ductile V-Groove Wheel and Wrap Around Brake

Albion

94 Series TRL Top Plate Swivel Caster with 6 x 2.5 Flat Black Paint VM - Ductile V-Groove Wheel and Wrap Around Brake

View CAD
SKU: 94VM06428STRLWB94
Hurry up! Current stock:
Technical Data
Series 94 Series TRL
Brake Type Wrap Around (WB94)
Wheel Diameter 6
Tread Width 2.5
Wheel Type VM - Ductile V-Groove
Wheel Color Flat Black Paint
Bearing Type Precision Ball
Fastening Type Top Plate Swivel
Fastening Size 7 1/2" x 6 1/2"
Capacity 3
Mount Height 8.5
Swivel Radius 5.5
Swivel Lead 2.5
Swivel Lock N/A
Wheel Face V-Groove
Temperature Range Up to +350°F
Hardness Brinell 131 – 217
Features
Industries
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
