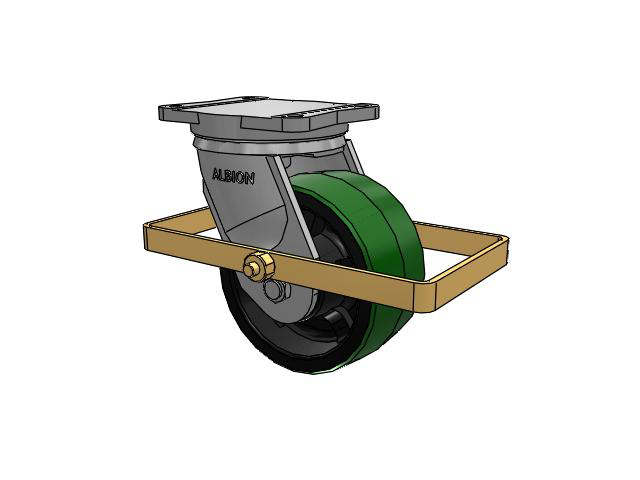

94 Series TRL Top Plate Swivel Caster with 8 x 4 Green Tread on Black Cast Iron Core PY - Polyurethane (Cast Iron Core) Wheel and Wrap Around Brake

Albion

94 Series TRL Top Plate Swivel Caster with 8 x 4 Green Tread on Black Cast Iron Core PY - Polyurethane (Cast Iron Core) Wheel and Wrap Around Brake

Name: 94 Series TRL Top Plate Swivel Caster with 8 x 4 Green Tread on Black Cast Iron Core PY - Polyurethane (Cast Iron Core) Wheel and Wrap Around Brake
Brand: Albion
SKU: 94PY08709STRLWB94
Availability: InStock

View CAD

SKU: 94PY08709STRLWB94

Hurry up! Current stock:

Current Stock:

Quantity:

Technical Data

Series	94 Series TRL
Brake Type	Wrap Around (WB94)
Wheel Diameter	8
Tread Width	4
Wheel Type	PY - Polyurethane (Cast Iron Core)
Wheel Color	Green Tread on Black Cast Iron Core
Bearing Type	Tapered
Fastening Type	Top Plate Swivel
Fastening Size	7 1/2" x 6 1/2"
Capacity	3
Mount Height	10.5
Swivel Radius	6.5
Swivel Lead	2.5
Swivel Lock	N/A
Wheel Face	Available in 3Â° crown
Temperature Range	-40Â°F to +180Â°F
Hardness	95 Shore A

Features

Heavy Duty Kingpin

Industries

Aerospace
Air Cargo
Automotive

Downloads

070_071_2016_94TRL_Series_Casters.pdf

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.
