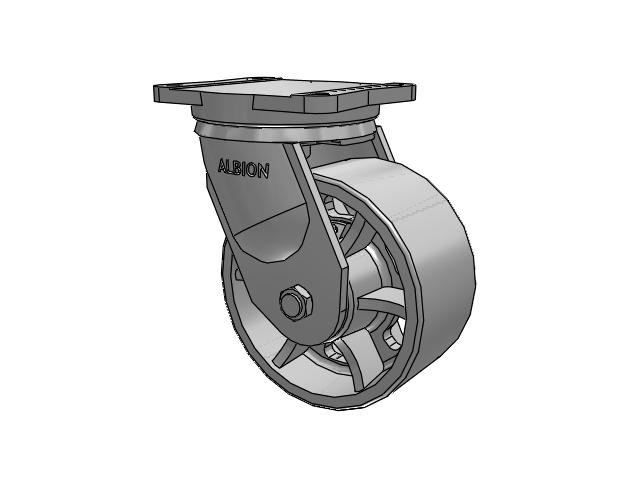

94 Series TRL Top Plate Swivel Caster with 8 x 4 Grey Enamel CA - Cast Iron Wheel
94 Series TRL Top Plate Swivel Caster with 8 x 4 Grey Enamel CA - Cast Iron Wheel

Albion

94 Series TRL Top Plate Swivel Caster with 8 x 4 Grey Enamel CA - Cast Iron Wheel

View CAD
SKU: 94CA08709STRL
Hurry up! Current stock:
Technical Data
Series 94 Series TRL
Caster Type Swivel
Brake Type None
Wheel Diameter 8
Tread Width 4
Wheel Type CA - Cast Iron
Wheel Color Grey Enamel
Bearing Type Tapered
Fastening Type Top Plate Swivel
Fastening Size 7 1/2" x 6 1/2"
Capacity 6
Mount Height 10.5
Swivel Radius 6.5
Swivel Lead 2.5
Swivel Lock None
Wheel Face Machined flat with rounded edges
Temperature Range Up to +800°F
Hardness Brinell 145
Wheel Material Metal
Wheel Category Cast Iron
