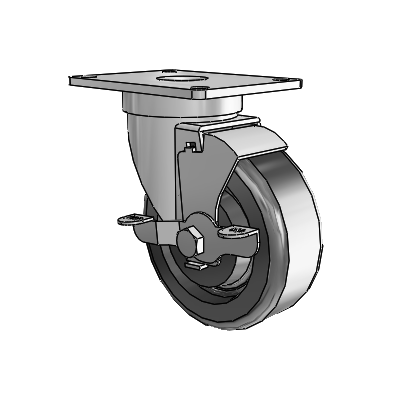

S30 Series Top Plate Stainless Steel Swivel Caster with 4 x 1.5 Phenolic Wheel and VertiLoc Brake
S30 Series Top Plate Stainless Steel Swivel Caster with 4 x 1.5 Phenolic Wheel and VertiLoc Brake

Jarvis

S30 Series Top Plate Stainless Steel Swivel Caster with 4 x 1.5 Phenolic Wheel and VertiLoc Brake

View CAD
SKU: 4-S30-121 PLT3 VL GS
Hurry up! Current stock:
Technical Data
Series S30 Series
Caster Type Swivel
Brake Type VertiLoc
Finish Stainless Steel
Wheel Diameter 4
Tread Width 1.5
Wheel Type Phenolic
Bearing Type Plain Bearing
Fastening Type Top Plate
Fastening Size 2-3/8" x 3-5/8"
Bolt Hole Spacing 2-3/8" x 3-7/16"
Mounting Bolt Diameter 5/16"
Capacity 300
Mount Height 5.0625
Swivel Radius 3.5
Swivel Seal Grease Seal

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD

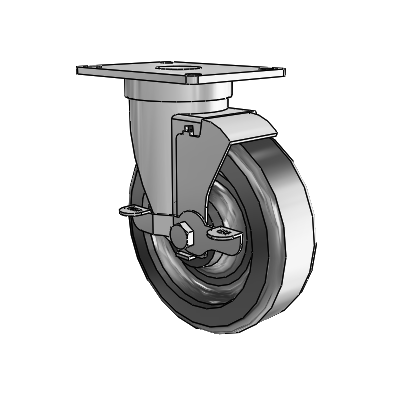

Customers Also Viewed
