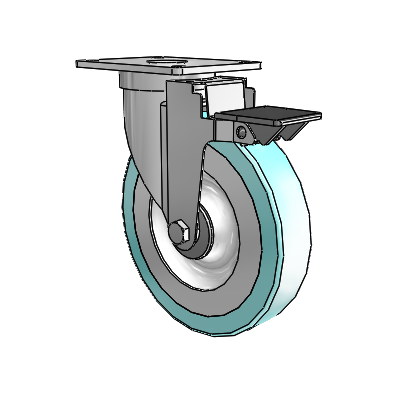

S30 Series Top Plate Stainless Steel Swivel Caster with 6 x 1.25 Advantage Health Wheel and PosiLoc Brake
S30 Series Top Plate Stainless Steel Swivel Caster with 6 x 1.25 Advantage Health Wheel and PosiLoc Brake

Jarvis

S30 Series Top Plate Stainless Steel Swivel Caster with 6 x 1.25 Advantage Health Wheel and PosiLoc Brake

View CAD
SKU: 6-S30-213MF PLT3 PL
Hurry up! Current stock:
Technical Data
Series S30 Series
Caster Type Swivel
Brake Type PosiLoc
Finish Stainless Steel
Wheel Diameter 6
Tread Width 1.25
Wheel Type Advantage Health
Bearing Type Ball
Fastening Type Top Plate
Fastening Size 2-3/8" x 3-5/8"
Bolt Hole Spacing 2-3/8" x 3-7/16"
Mounting Bolt Diameter 5/16"
Capacity 325
Mount Height 7.1875
Swivel Radius 4.75

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
